WKGL17 Thunderbolt 3/4 eGPU Dock External PCIe Graphics Card Bracket
$100.50
WKGL17 external eGPU dock for Thunderbolt 3/4 compatible laptops and mini PCs, with PCIe graphics card support, 40Gbps connection, aluminum alloy bracket, and ATX power supply support.

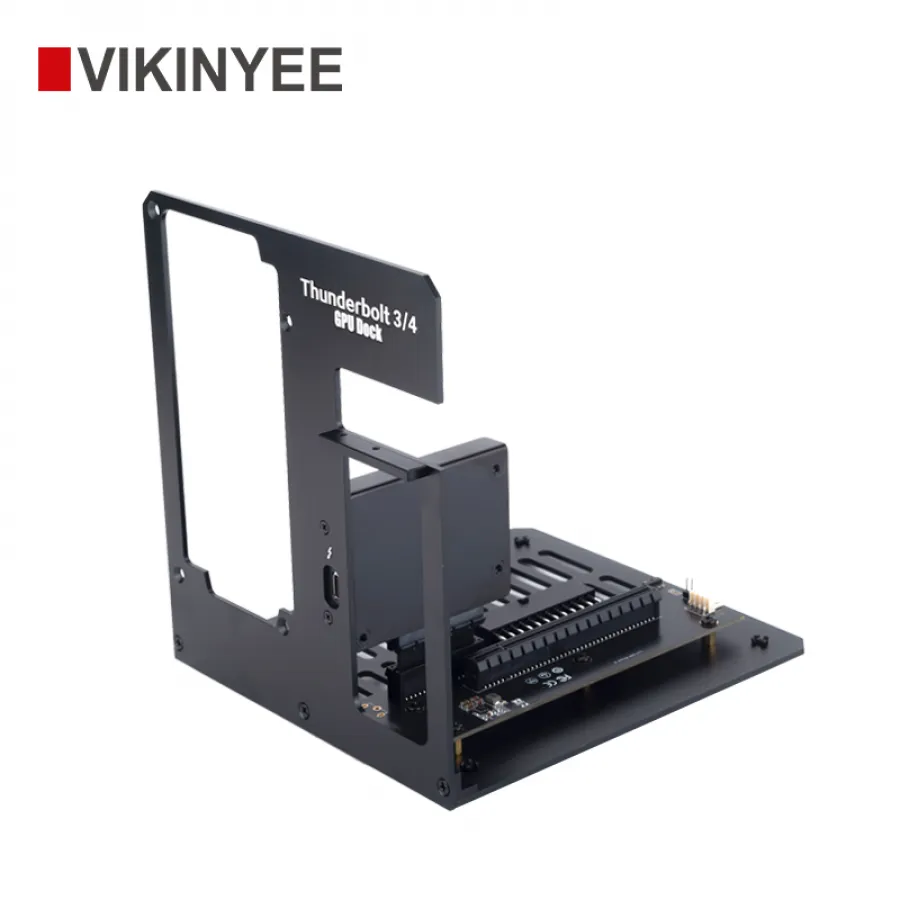

WKGL17 Thunderbolt 3/4 eGPU Dock
The WKGL17 is an external GPU dock designed to connect a desktop PCIe graphics card to a compatible laptop, mini PC, or workstation through Thunderbolt 3, Thunderbolt 4, or compatible USB4 interfaces. It is built for gaming, video editing, rendering, image processing, and other GPU-accelerated workflows.

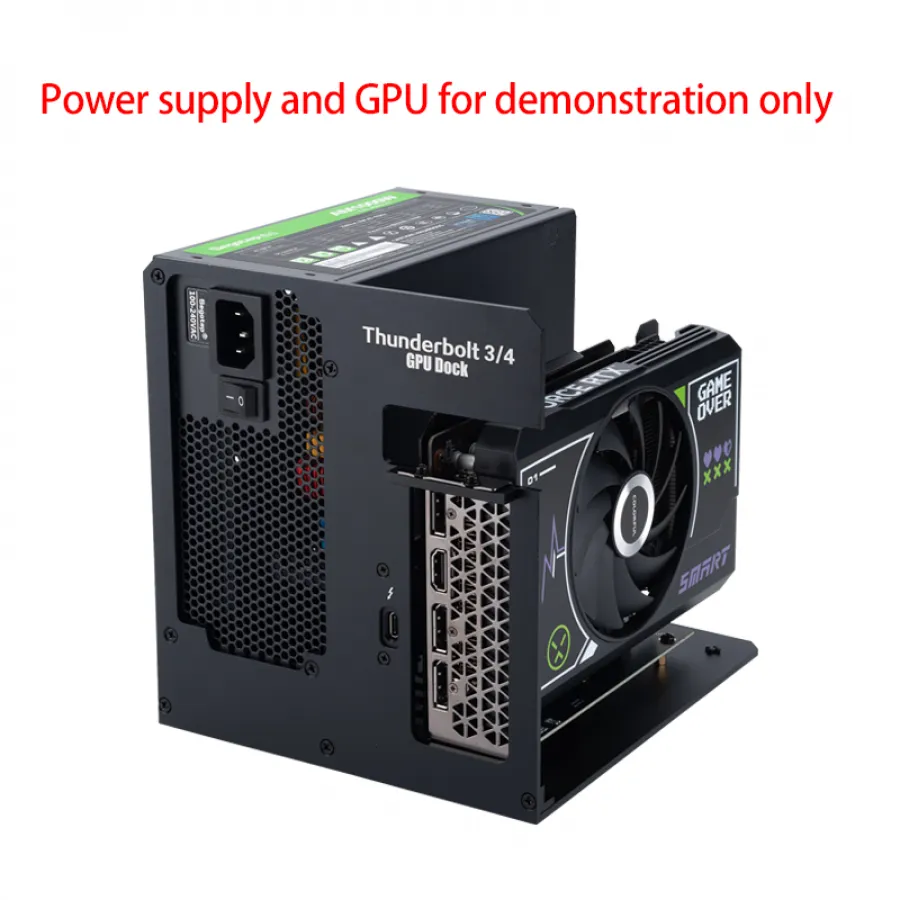

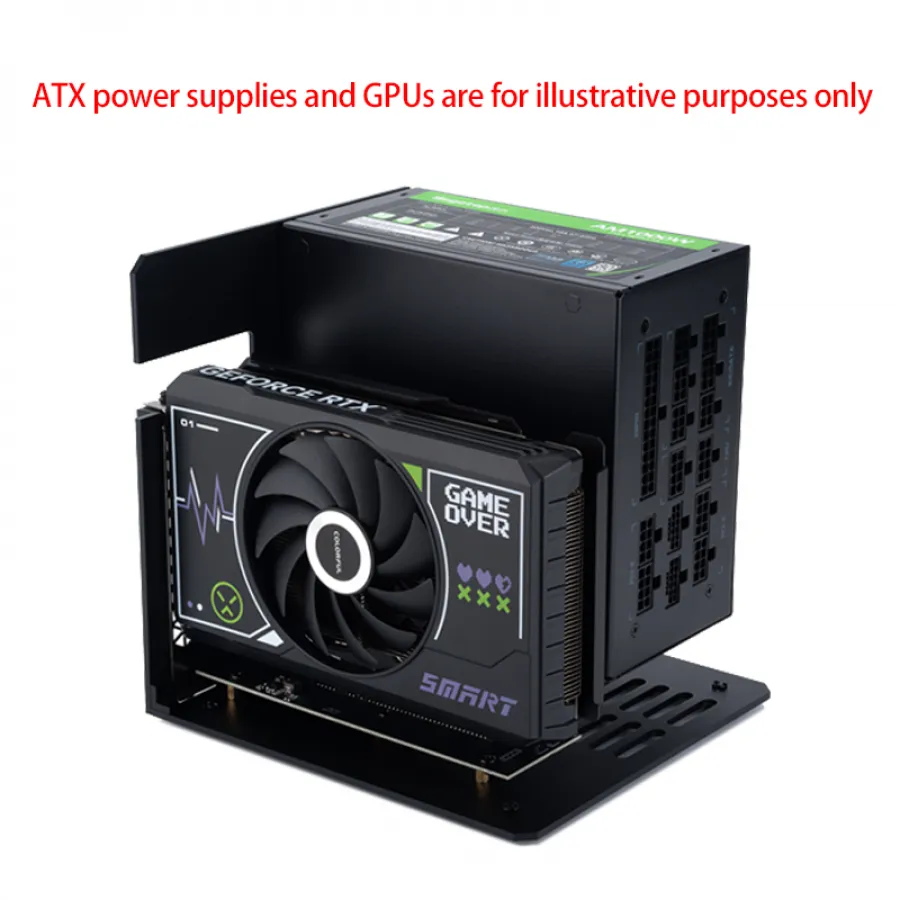

This upgraded WKGL17 dock includes an ATX power socket and an open bracket design, allowing installation of a standard ATX power supply and full-size desktop graphics card. Power supply and graphics card are shown in some images for demonstration only and are not included unless separately specified.
Key Features
- External PCIe graphics card dock for Thunderbolt 3/4 compatible systems
- Supports up to 40Gbps connection speed

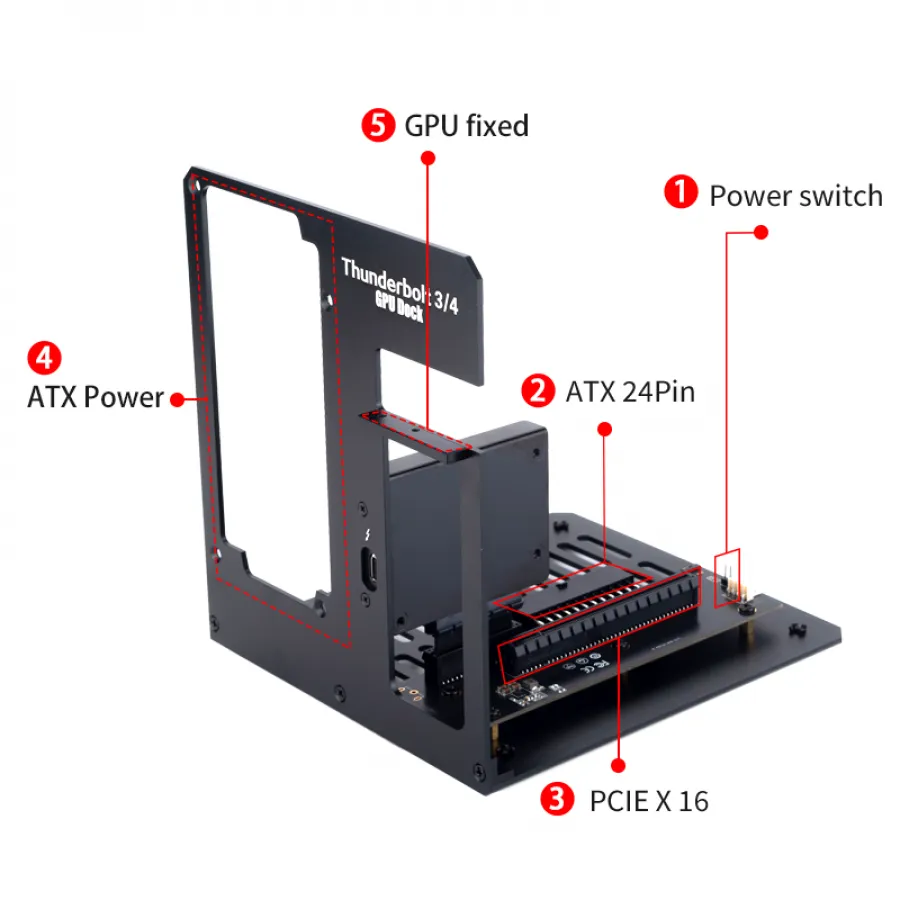

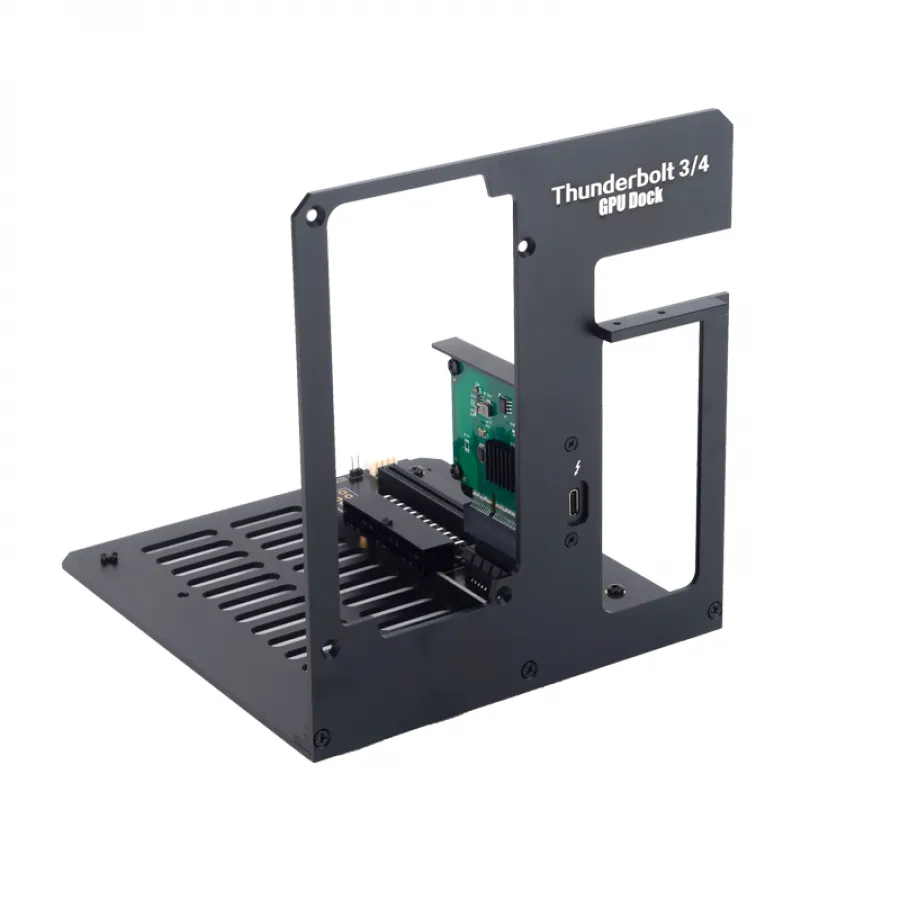

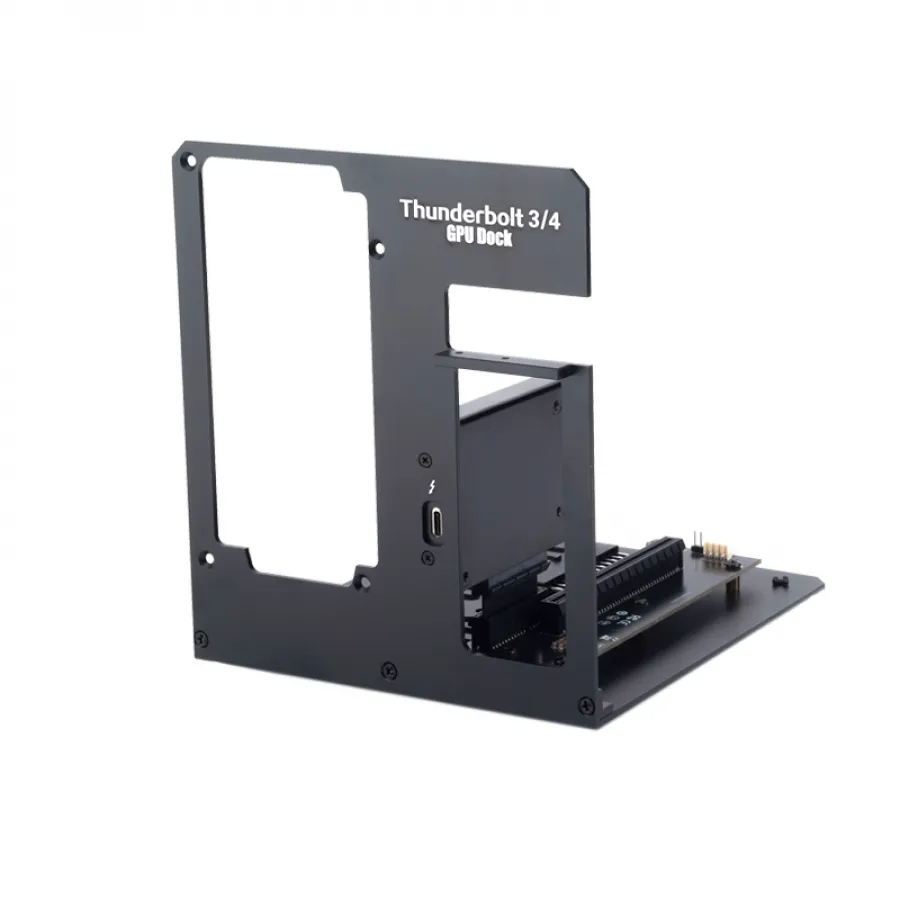

- Open frame bracket for desktop GPU installation
- ATX power supply support for high-power graphics cards
- Aluminum alloy shell / bracket construction
- Suitable for gaming, video editing, rendering, and GPU acceleration
- Cable length options commonly available: 0.5m, 1m, and 1.5m
Important Compatibility Notes
- Requires a Thunderbolt 3, Thunderbolt 4, or compatible USB4 host port
- Does not support Thunderbolt 1 or Thunderbolt 2 ports
- Does not support MacBook models with M1, M2, or M3 chips
- On macOS, Nvidia graphics cards are not supported
- When using Boot Camp / Windows on supported Intel MacBook models, use the latest Windows 11 system and check GPU compatibility first
- WKGL17C50 and WKGL17C100 cable versions do not support macOS use for MacBook according to the supplier information
- Intel standalone graphics cards may work, but are not recommended for gaming eGPU use due to driver optimization limitations
Technical Specifications
| Brand | Wikingoo / VIKINYEE style WKGL17 listing |
| Model | WKGL17 |
| Type | PCI-E Riser / External GPU Dock |
| Interface | Thunderbolt 3 / Thunderbolt 4 compatible |
| Maximum Speed | 40Gbps |
| GPU Support | Desktop PCIe graphics cards, including cards such as RX 7900XT and RTX 4090 depending on power and system compatibility |
| Power Supply Support | ATX power supply, approx. 150 x 140 x 86 mm or compatible |
| Material | Aluminum alloy |
| Size | Approx. 182 x 172 x 162 mm |
| Weight | Approx. 600 g |
| Package | Yes |
| Certification | None |
| Origin | Mainland China |
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 18.2 × 17.2 × 16.2 in |
| Model | WKGL17 |
| Interface | Thunderbolt 3 / Thunderbolt 4 compatible |
| Speed | 40Gbps |
| Type | PCI-E Riser / eGPU Dock |
| Material | Aluminum Alloy |
| Power Supply Support | ATX 150 x 140 x 86 mm or compatible |
| Cable Length | 0.5m, 1m, 1.5m |
| Size | 182 x 172 x 162 mm approx. |
| Weight | 600 g approx. |
